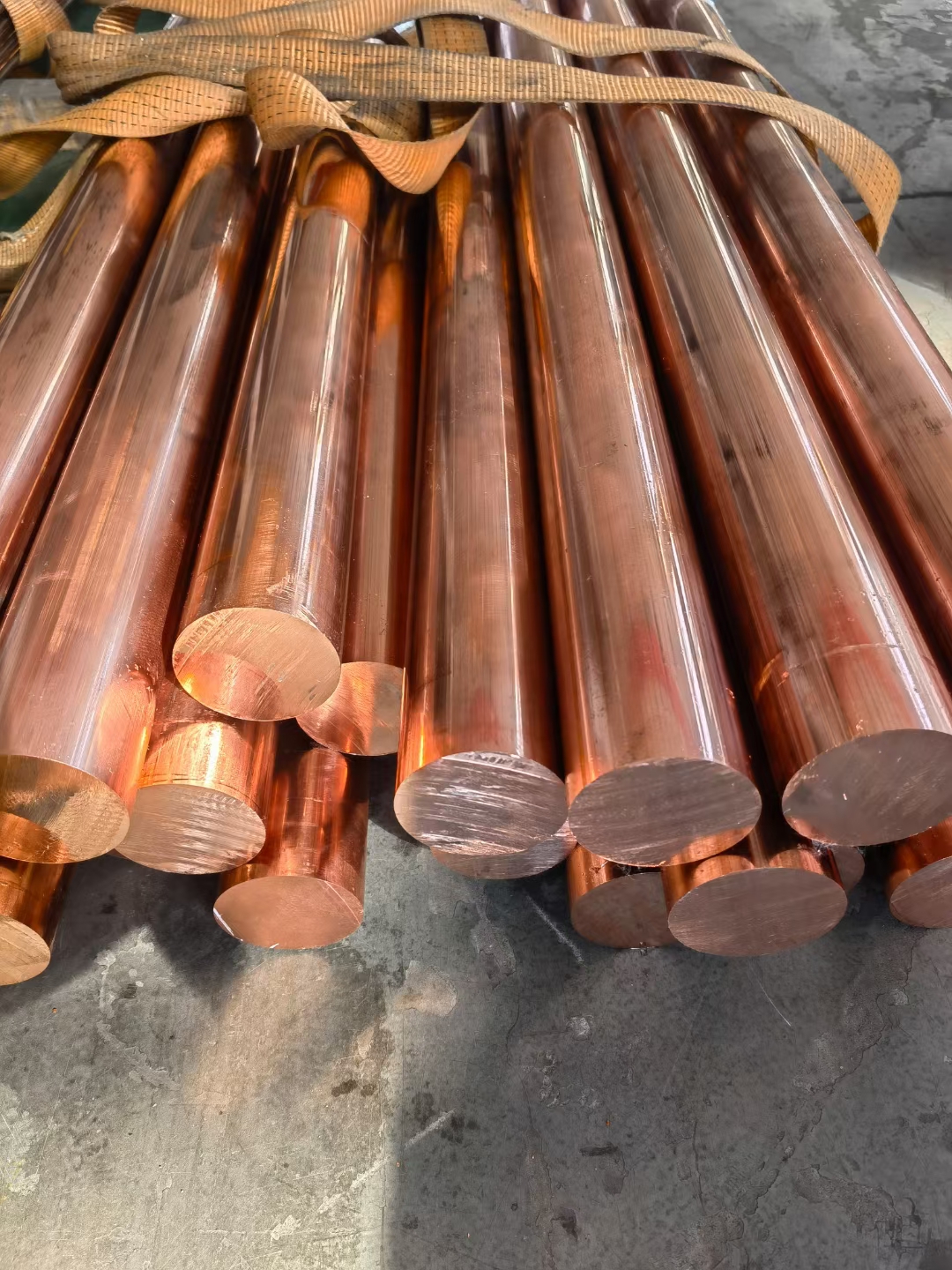

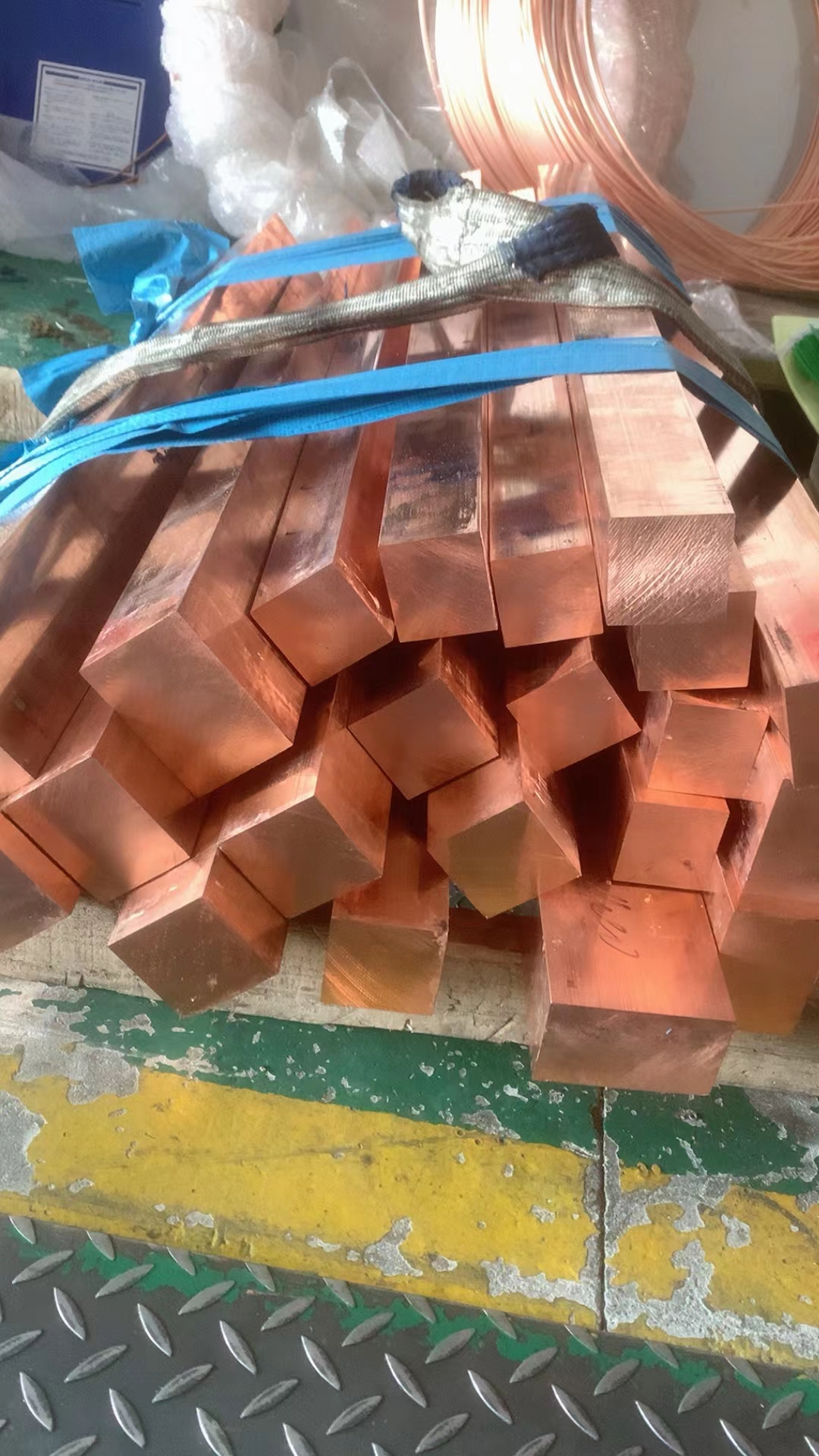

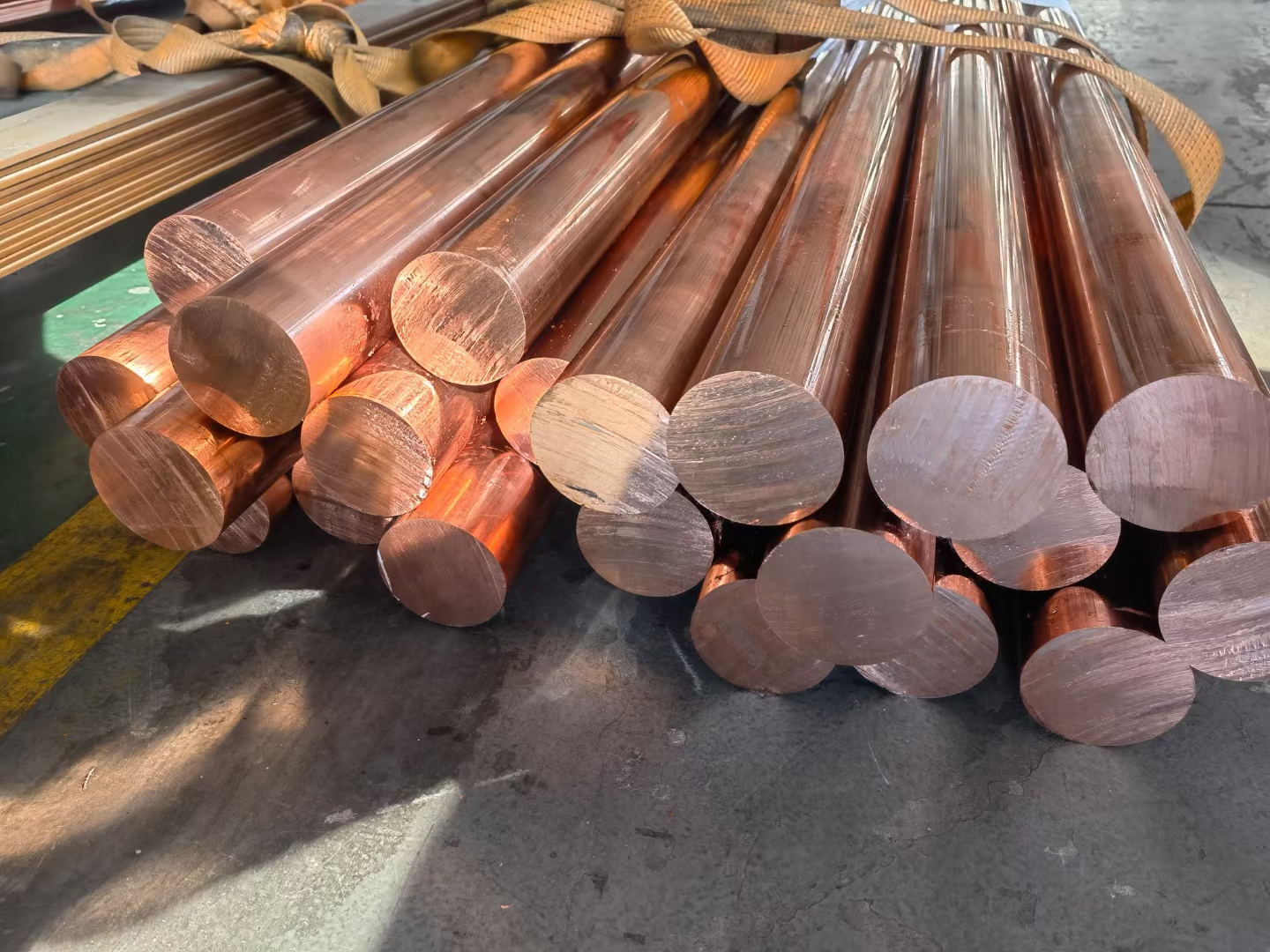

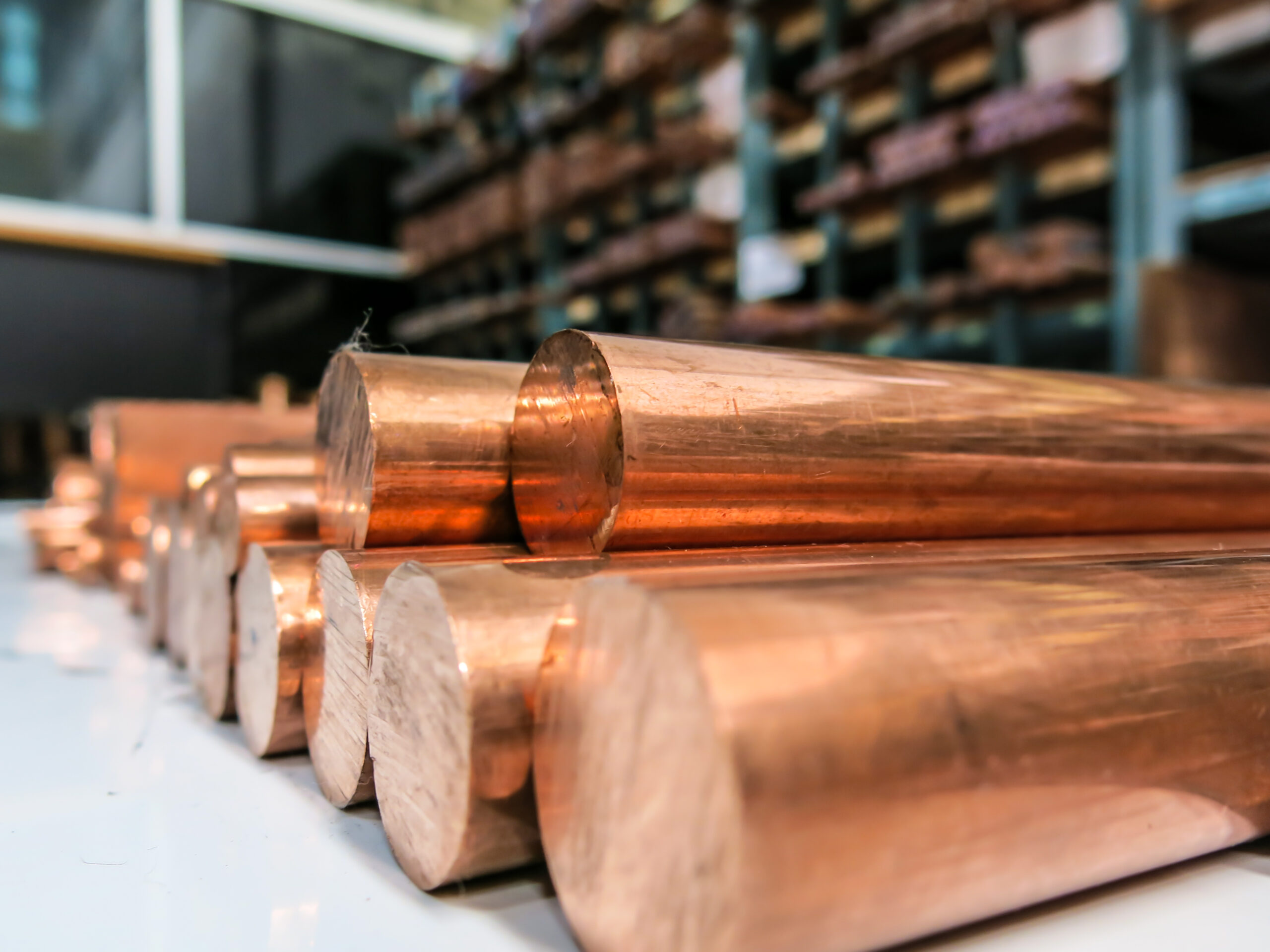

Different Material Names for C10200 Pure Copper Bar: GB- TU1, ISO- CuOF, ASTM- C10200, JIS- C1020 BS- C110, DIN- OF-Cu.
C10200 Pure Copper Bar is one kind of copper material used in high stability with maintenance’s roofing and curtain wall in buildings. C10200 is with good property performances in environmental protection, safe when application, easy for machining and especially anti- corrosion.
When production for C10200 Pure Copper Bar, the available sizes are: Thickness- 0.05mm to 60mm; Width- Up to 3000mm; Length- Up to 6000mm.
Chemical Composition for C10200 Pure Copper Bar:
| Grade | Cu+Ag | Sb | P | Bi | Ni | Fe | Pb | Sn | S | Zn | O |
| TU1 | 99.97 | 0.002 | 0.002 | 0.001 | 0.002 | 0.004 | 0.003 | 0.002 | 0.004 | 0.003 | 0.002 |
Equivalent Grades in Different Standards for Pure Copper Bar:
| GB | ISO | ASTM | JIS | BS | DIN |
| T2 | Cu-RTP | C11000 | C1100 | C101 | R-Cu57 |
| TU1 | Cu-OF | C10200 | C1020 | C110 | OF-Cu |
| TU2 | Cu-OF | C10300 | C1020 | C103 | OF-Cu |
| TP1 | Cu-DLP | C12000 | C1201 | SW-Cu | |
| TP2 | Cu-DHP | C12200 | C1220 | C106 | SF-Cu |
| TAg0.1 | CuAg0.1 | C10400 | C1040 | CuAg0.1 |
When delivery for C10200 Pure Copper Bar, the status could be:Normalizing(N), Annealing(A),Stress Relieving, etc.
